ms-10: چه زمانی سلول‌های مستقل ابرسلول را نادرست پیش‌بینی می‌کنند؟

from pathlib import Path
import sys, json, hashlib, platform
from dataclasses import asdict, replace
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.patches import Rectangle
ROOT = Path.cwd()
if not (ROOT/'simulations').is_dir(): ROOT = ROOT.parent
sys.path.insert(0, str(ROOT/'simulations'))
from design_studies import (Design, order_metrics, spectral_sweep, bandwidth,
                           local_prediction, optimize_widths, grcwa_check)
from unit_cell_te import Cell, solve_cell, sample_ey
plt.rcParams.update({'figure.dpi': 125, 'font.size': 10, 'axes.spines.top': False,
                     'axes.spines.right': False})
OUT = ROOT/'data/design-studies'; OUT.mkdir(parents=True, exist_ok=True)
def metadata(design):
    import scipy
    return dict(parameters=asdict(design), units='um, degrees; incident-normalized power',
      conventions='exp(-i omega t), TE Ey, r at z=0, t at z=height',
      sources={name:hashlib.sha256((ROOT/'simulations'/name).read_text(encoding='utf-8').encode()).hexdigest()
               for name in ['design_studies.py','unit_cell_te.py','metasurface_synthesis.py']},
      environment={'python':platform.python_version(),'numpy':np.__version__,'scipy':scipy.__version__})
def geometry(ax, design, title):
    L=len(design.widths_um)*design.pitch_um; h=design.height_um
    ax.add_patch(Rectangle((0,h),L,.32,fc='#c3ddeb'))
    for j,w in enumerate(design.widths_um):
        ax.add_patch(Rectangle(((j+.5)*design.pitch_um-w/2,0),w,h,fc='#167b9b',ec='white'))
        ax.text((j+.5)*design.pitch_um,-.07,str(j+1),ha='center',fontsize=9)
    ax.axvline(0,c='#9866aa',ls='--');ax.axvline(L,c='#9866aa',ls='--')
    ax.set(xlim=(-.1,L+.1),ylim=(h+.32,-.4),xlabel='x (um)',ylabel='z (um)',title=title)
    ax.text(.05,.04,'TE: E along y; k along +z',transform=ax.transAxes,fontsize=8)
    ax.text(.05,.13,'Repeated in x; invariant in y',transform=ax.transAxes,fontsize=8)

design=Design(); contrasts=np.linspace(0,1,5)
M_cell, M_full, M_check=24,144,192
orders=np.arange(-5,6); mean=np.mean(design.widths_um)
cases=[]
for alpha in contrasts:
    widths=mean+alpha*(np.array(design.widths_um)-mean)
    current=replace(design,widths_um=tuple(widths)); full=current.solve(M_full); check=current.solve(M_check)
    local=local_prediction(current,orders,M_cell); local_check=local_prediction(current,orders,32)
    ix=orders+M_full; iy=orders+M_check
    delta=max(abs(full['T'][ix]-check['T'][iy]).max(),abs(full['R'][ix]-check['R'][iy]).max())
    local_delta=max(abs(local['T']-local_check['T']).max(),abs(local['R']-local_check['R']).max())
    assert delta<1e-4 and local_delta<1e-4
    cases.append(dict(contrast=float(alpha),widths_um=widths.tolist(),orders=orders.tolist(),
        full_T=check['T'][iy].tolist(),full_R=check['R'][iy].tolist(),
        local_T=local['T'].tolist(),local_R=local['R'].tolist(),
        full_balance_error=check['balance_error'],local_power_sum=float(local['R'].sum()+local['T'].sum()),
        harmonic_power_change=float(delta),local_harmonic_change=float(local_delta)))
# Identical-ridge embedding: matched physical Fourier cutoffs, M_super=6*M_cell.
uniform=replace(design,widths_um=(float(mean),)*6)
p=asdict(uniform);p.pop('widths_um');p['period_um']=p.pop('pitch_um')
a=solve_cell(Cell(width_um=float(mean),**p),24); b=uniform.solve(144)
embedding_error=max(abs(a['t'][24]-b['t'][144]),abs(a['r'][24]-b['r'][144]))
forbidden=(b['orders']%6)!=0
forbidden_amplitude=max(abs(b['t'][forbidden]).max(),abs(b['r'][forbidden]).max())
assert embedding_error<1e-10 and forbidden_amplitude<1e-10
print('Uniform embedding complex error:',embedding_error)
for c in cases:
    i=list(orders).index(1)
    print('contrast',c['contrast'],'local/full T+1',c['local_T'][i],c['full_T'][i],
          'local R+T',c['local_power_sum'])

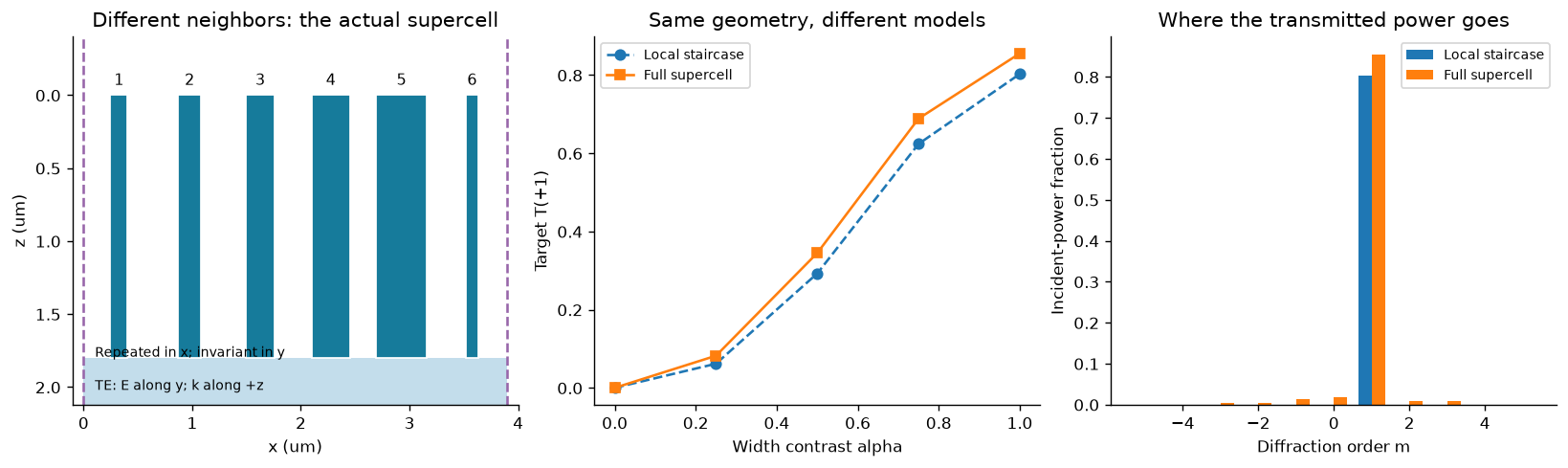

fig,ax=plt.subplots(1,3,figsize=(13,3.8),layout='constrained')
geometry(ax[0],design,'Different neighbors: the actual supercell')
i=list(orders).index(1)
ax[1].plot(contrasts,[c['local_T'][i] for c in cases],'o--',label='Local staircase')
ax[1].plot(contrasts,[c['full_T'][i] for c in cases],'s-',label='Full supercell')
ax[1].set(xlabel='Width contrast alpha',ylabel='Target T(+1)',title='Same geometry, different models');ax[1].legend(fontsize=8)
c=cases[-1];ax[2].bar(orders-.18,c['local_T'],width=.36,label='Local staircase')
ax[2].bar(orders+.18,c['full_T'],width=.36,label='Full supercell')
ax[2].set(xlabel='Diffraction order m',ylabel='Incident-power fraction',title='Where the transmitted power goes');ax[2].legend(fontsize=8)
plt.show()

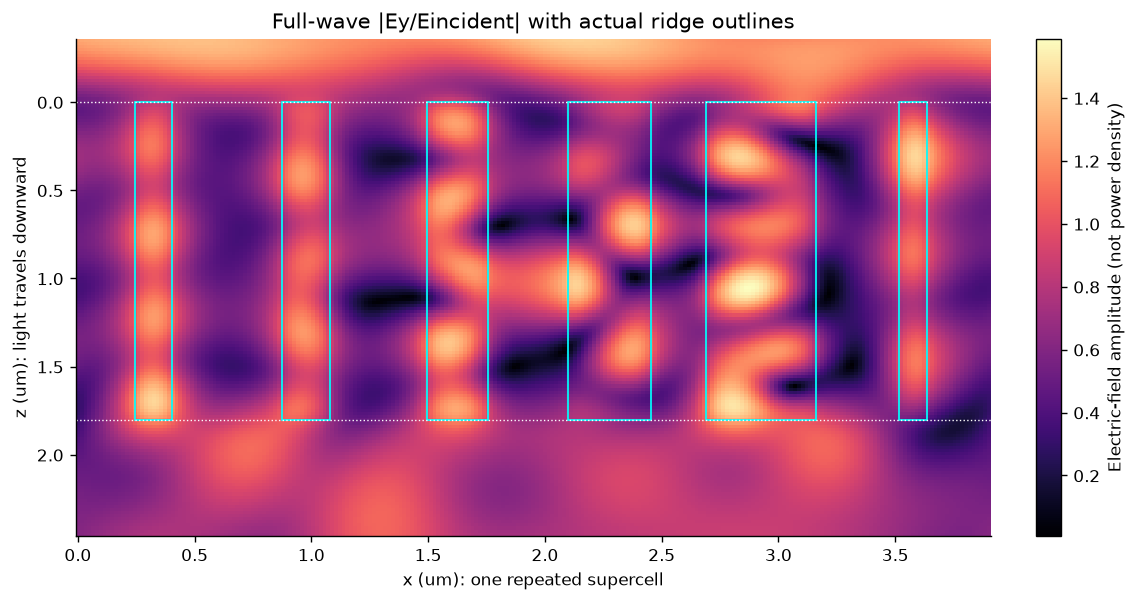

full=design.solve(M_check)
cell=Cell(period_um=len(design.widths_um)*design.pitch_um,width_um=design.widths_um[0],
          height_um=design.height_um,wavelength_um=design.wavelength_um,n_ridge=design.n_ridge,
          n_gap=design.n_gap,n_incident=design.n_incident,n_substrate=design.n_substrate)
x=np.linspace(0,cell.period_um,241);z=np.linspace(-.35,design.height_um+.65,161)
field=sample_ey(cell,full,x,z)
fig,ax=plt.subplots(figsize=(9,4.7),layout='constrained')
pic=ax.pcolormesh(x,z,abs(field),shading='auto',cmap='magma')
for j,w in enumerate(design.widths_um):
    ax.add_patch(Rectangle(((j+.5)*design.pitch_um-w/2,0),w,design.height_um,fc='none',ec='cyan',lw=1))
ax.axhline(0,c='white',ls=':',lw=.8);ax.axhline(design.height_um,c='white',ls=':',lw=.8)
ax.invert_yaxis();ax.set(xlabel='x (um): one repeated supercell',ylabel='z (um): light travels downward',
    title='Full-wave |Ey/Eincident| with actual ridge outlines')
fig.colorbar(pic,ax=ax,label='Electric-field amplitude (not power density)');plt.show()
report=dict(metadata=metadata(design),cases=cases,half_orders=[M_full,M_check],
    local_half_orders=[M_cell,32],uniform_embedding_error=float(embedding_error),
    forbidden_amplitude=float(forbidden_amplitude))
(OUT/'coupling.json').write_text(json.dumps(report,indent=2)+'\n')
