نخستین جانشین: یادگیری، طراحی و بررسی

import sys
import numpy as np
import matplotlib
import matplotlib.pyplot as plt

SEED = 24
G_MIN, G_MAX = 0.05, 0.95
N_DESIGNS = 80
N_TRAIN, N_VALID = 40, 20
OMEGA_MIN, OMEGA_MAX, N_OMEGA = 0.8, 1.2, 101
OMEGA0_OFFSET, OMEGA0_SLOPE = 0.9, 0.2
GAMMA_OFFSET, GAMMA_SLOPE = 0.025, 0.02
LENGTH_SCALES = (0.03, 0.06, 0.12, 0.24)
REGULARIZATIONS = (1e-8, 1e-6, 1e-4)
G_TARGET, N_CANDIDATES = 0.623, 901

assert N_TRAIN > 0 and N_VALID > 0 and N_TRAIN + N_VALID < N_DESIGNS
assert G_MIN < G_MAX and OMEGA_MIN < OMEGA_MAX
assert G_MIN <= G_TARGET <= G_MAX
assert N_OMEGA > 2 and N_CANDIDATES > 2
assert all(a > 0 for a in REGULARIZATIONS)
assert all(s > 0 for s in LENGTH_SCALES)
print(f"Python {sys.version.split()[0]}, NumPy {np.__version__}, Matplotlib {matplotlib.__version__}")
print("Evidence: analytical synthetic model; no full-wave or experimental validation.")

def resonant_sheet(g, omega):
    """Return complex (r, t), with shape (number of designs, frequencies)."""
    g = np.atleast_1d(np.asarray(g, dtype=float))[:, None]
    omega = np.atleast_1d(np.asarray(omega, dtype=float))[None, :]
    omega0 = OMEGA0_OFFSET + OMEGA0_SLOPE * g
    gamma = GAMMA_OFFSET + GAMMA_SLOPE * g
    if np.any(gamma <= 0):
        raise ValueError("Linewidth must be positive")
    delta = omega - omega0
    r = -gamma / (gamma - 1j * delta)
    return r, 1 + r

omega = np.linspace(OMEGA_MIN, OMEGA_MAX, N_OMEGA)
g_all = np.linspace(G_MIN, G_MAX, N_DESIGNS)
r_all, t_all = resonant_sheet(g_all, omega)
power_residual = np.max(np.abs(np.abs(r_all)**2 + np.abs(t_all)**2 - 1))
assert power_residual < 1e-12
g_check = 0.5 * (G_MIN + G_MAX)
r0, t0 = resonant_sheet(g_check, OMEGA0_OFFSET + OMEGA0_SLOPE * g_check)
assert np.allclose(r0, -1) and np.allclose(t0, 0)
print(f"Maximum analytical power-balance residual: {power_residual:.3e}")
print("Resonance check passed: r = -1 and t = 0.")

rng = np.random.default_rng(SEED)
ids = rng.permutation(N_DESIGNS)
train_ids = np.sort(ids[:N_TRAIN])
valid_ids = np.sort(ids[N_TRAIN:N_TRAIN + N_VALID])
test_ids = np.sort(ids[N_TRAIN + N_VALID:])
assert not (set(train_ids) & set(valid_ids) or set(train_ids) & set(test_ids) or set(valid_ids) & set(test_ids))
assert set(np.concatenate((train_ids, valid_ids, test_ids))) == set(range(N_DESIGNS))
g_train, y_train = g_all[train_ids], t_all[train_ids]
print("Training IDs:", train_ids.tolist())
print("Validation IDs:", valid_ids.tolist())
print("Test IDs:", test_ids.tolist())

def kernel(a, b, length_scale):
    distance = np.atleast_1d(a)[:, None] - np.atleast_1d(b)[None, :]
    return np.exp(-0.5 * (distance / length_scale)**2)

def complex_rmse(predicted, reference):
    return float(np.sqrt(np.mean(np.abs(predicted - reference)**2)))

def nearest_predict(g):
    nearest = np.argmin(np.abs(np.atleast_1d(g)[:, None] - g_train[None, :]), axis=1)
    return y_train[nearest]

trials = []
for length_scale in LENGTH_SCALES:
    for alpha in REGULARIZATIONS:
        weights = np.linalg.solve(kernel(g_train, g_train, length_scale) + alpha*np.eye(N_TRAIN), y_train)
        prediction = kernel(g_all[valid_ids], g_train, length_scale) @ weights
        trials.append((complex_rmse(prediction, t_all[valid_ids]), length_scale, alpha))
valid_rmse, best_length_scale, best_alpha = min(trials)
weights = np.linalg.solve(kernel(g_train, g_train, best_length_scale) + best_alpha*np.eye(N_TRAIN), y_train)

def surrogate_predict(g):
    return kernel(np.atleast_1d(g), g_train, best_length_scale) @ weights

print(f"Validation selected length scale={best_length_scale}, alpha={best_alpha:g}")
print(f"Validation complex RMSE={valid_rmse:.6g}")

y_test = t_all[test_ids]
nearest_test = nearest_predict(g_all[test_ids])
surrogate_test = surrogate_predict(g_all[test_ids])
assert np.isfinite(surrogate_test).all()
test_metrics = {}
for name, prediction in [("Nearest neighbor", nearest_test), ("Kernel ridge", surrogate_test)]:
    rmse = complex_rmse(prediction, y_test)
    power_mae = float(np.mean(np.abs(np.abs(prediction)**2 - np.abs(y_test)**2)))
    max_balance_error = float(np.max(np.abs(np.abs(prediction - 1)**2 + np.abs(prediction)**2 - 1)))
    test_metrics[name] = {"complex_rmse": rmse, "transmission_power_mae": power_mae, "max_power_balance_error": max_balance_error}
    print(f"{name:17s} complex RMSE={rmse:.6g}; power MAE={power_mae:.6g}; max balance residual={max_balance_error:.6g}")

# A phase-wrap diagnostic, separate from the regression comparison.
reference = np.exp(1j*np.deg2rad(179))
prediction = np.exp(1j*np.deg2rad(-179))
circular_error = np.rad2deg(np.angle(prediction*np.conj(reference)))
print(f"Phase example: ordinary difference = {-179-179} degrees; circular difference = {circular_error:.1f} degrees")

_, target = resonant_sheet(G_TARGET, omega)
g_candidates = np.linspace(G_MIN, G_MAX, N_CANDIDATES)
candidate_predictions = surrogate_predict(g_candidates)
objective = np.mean(np.abs(candidate_predictions - target)**2, axis=1)
selected_index = int(np.argmin(objective))
g_selected = float(g_candidates[selected_index])
predicted_selected = candidate_predictions[selected_index:selected_index+1]
r_verified, t_verified = resonant_sheet(g_selected, omega)
predicted_target_rmse = complex_rmse(predicted_selected, target)
verified_target_rmse = complex_rmse(t_verified, target)
grid_spacing = float(g_candidates[1]-g_candidates[0])
assert np.isfinite(objective).all() and G_MIN <= g_selected <= G_MAX
assert np.max(np.abs(np.abs(r_verified)**2 + np.abs(t_verified)**2 - 1)) < 1e-12
print(f"Target generator coordinate: {G_TARGET:.6f}")
print(f"Selected coordinate: {g_selected:.6f}; grid spacing: {grid_spacing:.6f}")
print(f"Surrogate target RMSE: {predicted_target_rmse:.6g}")
print(f"Analytically verified target RMSE: {verified_target_rmse:.6g}")

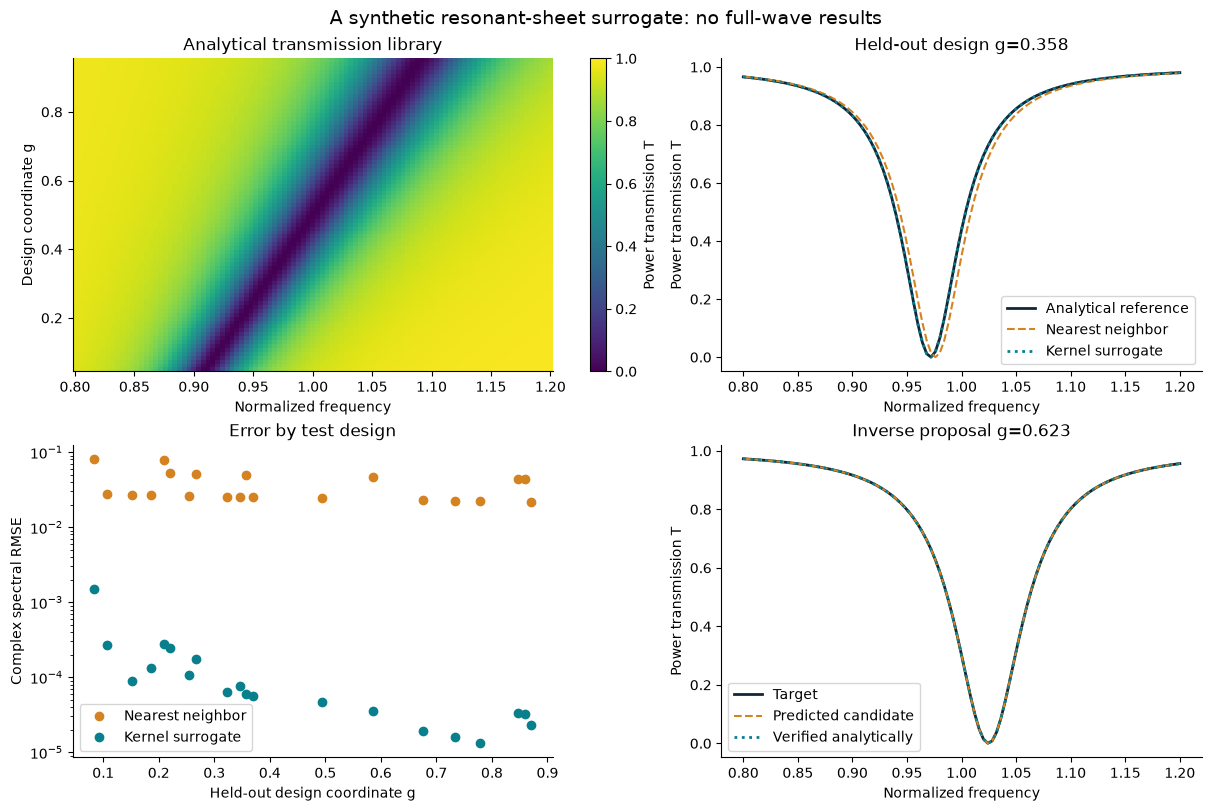

plt.rcParams.update({"font.size": 10, "axes.spines.top": False, "axes.spines.right": False})
fig, axes = plt.subplots(2, 2, figsize=(12, 8), constrained_layout=True)
ax = axes[0, 0]
im = ax.pcolormesh(omega, g_all, np.abs(t_all)**2, shading="auto", cmap="viridis", vmin=0, vmax=1)
ax.set(xlabel="Normalized frequency", ylabel="Design coordinate g", title="Analytical transmission library")
fig.colorbar(im, ax=ax, label="Power transmission T")

example = len(test_ids)//2
ax = axes[0, 1]
ax.plot(omega, np.abs(y_test[example])**2, color="#12263a", label="Analytical reference", linewidth=2)
ax.plot(omega, np.abs(nearest_test[example])**2, '--', color="#d48320", label="Nearest neighbor")
ax.plot(omega, np.abs(surrogate_test[example])**2, ':', color="#087f8c", label="Kernel surrogate", linewidth=2)
ax.set(xlabel="Normalized frequency", ylabel="Power transmission T", title=f"Held-out design g={g_all[test_ids[example]]:.3f}")
ax.legend()

ax = axes[1, 0]
for label, prediction, color in [("Nearest neighbor", nearest_test, "#d48320"), ("Kernel surrogate", surrogate_test, "#087f8c")]:
    error = np.sqrt(np.mean(np.abs(prediction-y_test)**2, axis=1))
    ax.semilogy(g_all[test_ids], np.maximum(error, 1e-16), 'o', label=label, color=color)
ax.set(xlabel="Held-out design coordinate g", ylabel="Complex spectral RMSE", title="Error by test design")
ax.legend()

ax = axes[1, 1]
ax.plot(omega, np.abs(target[0])**2, color="#12263a", label="Target", linewidth=2)
ax.plot(omega, np.abs(predicted_selected[0])**2, '--', color="#d48320", label="Predicted candidate")
ax.plot(omega, np.abs(t_verified[0])**2, ':', color="#087f8c", label="Verified analytically", linewidth=2)
ax.set(xlabel="Normalized frequency", ylabel="Power transmission T", title=f"Inverse proposal g={g_selected:.3f}")
ax.legend()
fig.suptitle("A synthetic resonant-sheet surrogate: no full-wave results", fontsize=14)
plt.show()
